Technical Overview

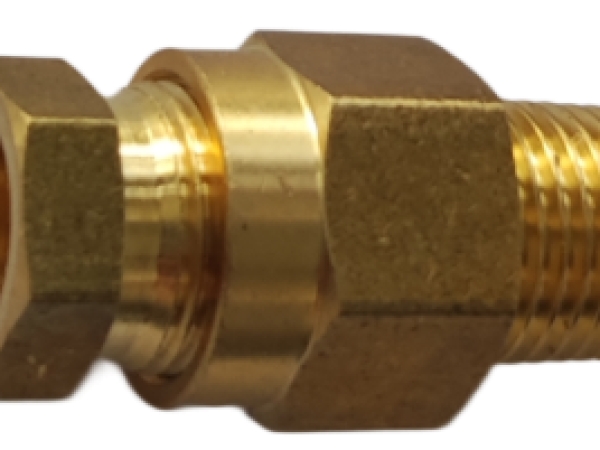

Brass Internal Compression Male Connector – Imperial Tube × BSPT Thread

This brass internal compression male connector is designed for connecting imperial tubing to a female BSPT threaded port. The internal compression design provides a secure and reliable seal while allowing quick installation without soldering or flaring.

Manufactured from high-quality brass, the fitting offers excellent corrosion resistance and durability for long service life. It is widely used in pneumatic systems, lubrication lines, cooling systems, and general fluid transfer applications.

Connection Type	Compression
Fitting Shape	Straight Fittings
Material	Brass
Finish	Natural
Working Pressure	0–500 PSI (0–3500 kPa) depending upon tube size and media
Temp Range	Depends on the material of the tubing being used.
Media	Air, Water, Oil, Others,
Tube Type	Copper, Aluminum, Brass,Thermoplastic tubing

Markets & Applications

Markets:

Industrial Equipment, Pneumatic Systems, Hydraulic & Fluid Systems, Automotive, Packaging Machinery

Applications:

Air lines, lubrication lines, cooling systems, fuel and oil lines, general fluid transfer

Compliance

·RoHS: Compliant under Exemption 6(c)

·REACH: Contains Lead (CAS 7439-92-1) above 0.1% w/w (SVHC declared)

·California Prop 65: Warning label applied as required

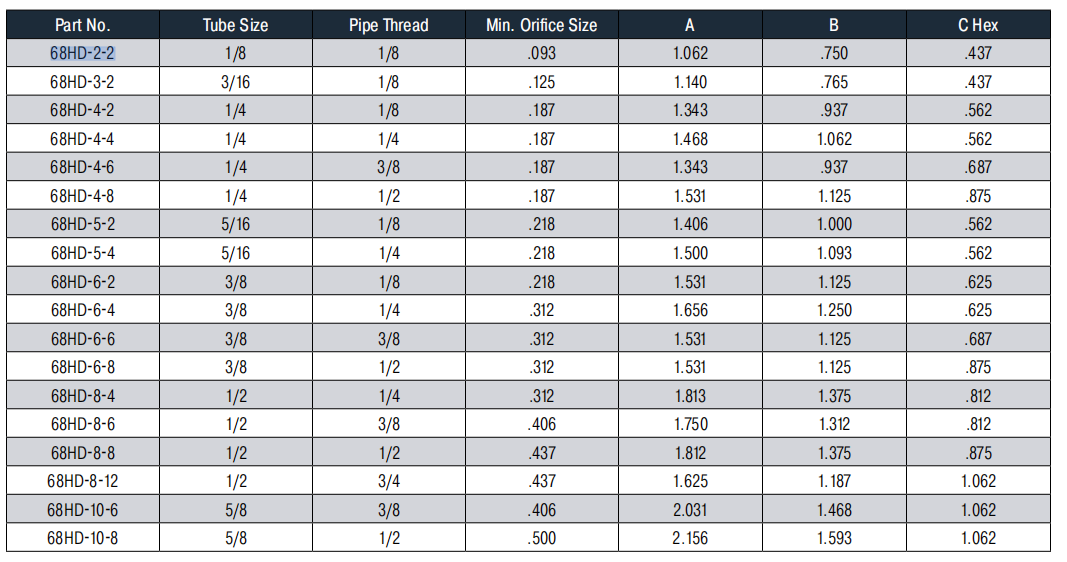

Dimensions & Drawings

Assembly Instructions

1. Cut the tube square, clean and remove any burrs or loose cuttings.

2. If using metallic tube, move to point 3. If using non-metallic tube, insert a spigot into the end of the tube.

3. Loosen nut 1/2" turn and insert tube into the mouth of the fitting.

Ensure the tube passes through the sleeve and rests against the tube stop. (The tube is resting against the tube stop when the tubing can no longer be inserted any further into the body of the fitting).

4. From finger tight, tighten nut to ‘spanner firm’ position (Caution: do not over-tighten).

5. If used in a pneumatic application, apply a soapy solution to the joint to be certain a positive seal has been made. Visually inspect for leaks if used in an hydraulic application.

Part Numbers & Cross Reference

Our Part No.	Product Description	Parker Part No.	Eaton/Weatherhead Part No.
10568.0204	1/8"x1/4" BSPT Male Connector
10568.0304	3/16"x1/4" BSPT Male Connector
10568.0502	5/16"x1/8" BSPT Male Connector
10568.0506	5/16"x3/8" BSPT Male Connector
10568.0508	5/16"x1/2" BSPT Male Connector
10568.0604	3/8"x1/4" BSPT Male Connector
10568.0804	1/2"x1/4" BSPT Male Connector
10568.0808	1/2"x1/2" BSPT Male Connector
10568.1212	3/4"x3/4" BSPT Male Connector
