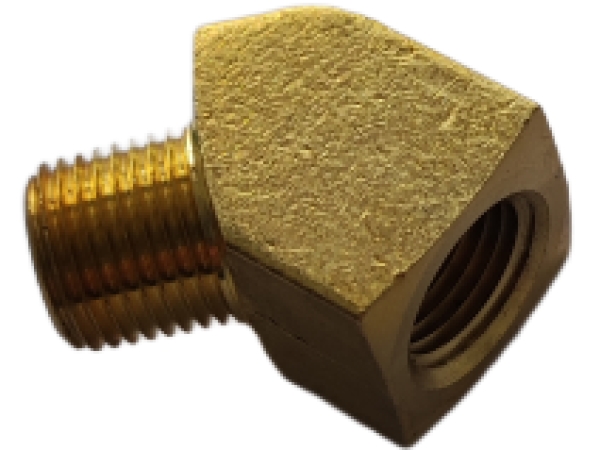

This brass 45° street elbow is designed to change the direction of piping by 45 degrees while connecting directly to a female NPT threaded port. The street elbow design features one male and one femal
Material
Brass
Finish
Natural
This brass 45° street elbow is designed to change the direction of piping by 45 degrees while connecting directly to a female NPT threaded port. The street elbow design features one male and one female NPT thread for convenient installation.
Manufactured from high-quality brass, it provides excellent corrosion resistance and durability. It is widely used in plumbing, pneumatic systems, hydraulic lines, and general fluid transfer applications.
| Connection Type | Threaded |
| Fitting Shape | Elbows |
| Material | Brass |
| Finish | Natural |
| Working Pressure | Up to 1000 PSI (68.9 bar) |
| Temp Range | -65°F to +250°F (-54°C to +121°C) |
| Media | Air, Water, |
| Tube Type | Copper, Brass, Iron Pipe |
